Product Details
Application
XHHW-2 cables are primarily use for power distribution. The cables may be used in wet or dry locations, with conductor temperatures not exceeding 90℃. Voltage rating for XHHW-2 cable is 600V.
Standards:
Meets or exceed the following standards:
UL 44
NEMA WC-70
Requirements of the National Electrical Code ASTM B800, B801
Federal Specification J-C-30B Sunlight resistant
UL 44
NEMA WC-70
Requirements of the National Electrical Code ASTM B800, B801
Federal Specification J-C-30B Sunlight resistant
Specifications
Low Voltage
UV Resistance
Working Temperature 90℃

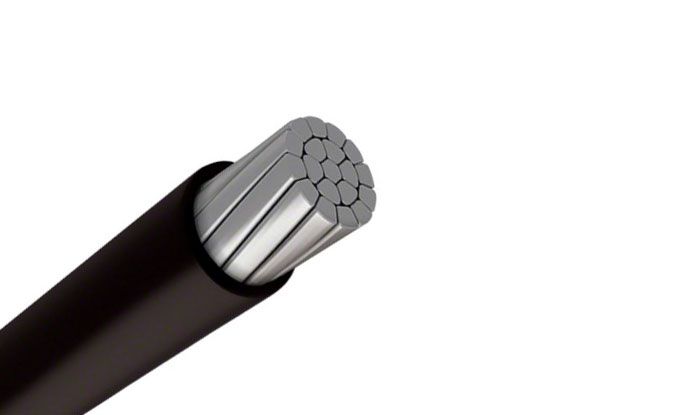

construction
- Conductor:
Compact soft drawn bare 8000 series aluminum, with Class B stranding per ASTM.
- Insulation:
Abrasion, heat and moisture resistant cross-linked polyethylene insulation (XLPE), low coefficient of friction, “slippery” or “slick” material. It is available in ten solid colors.
