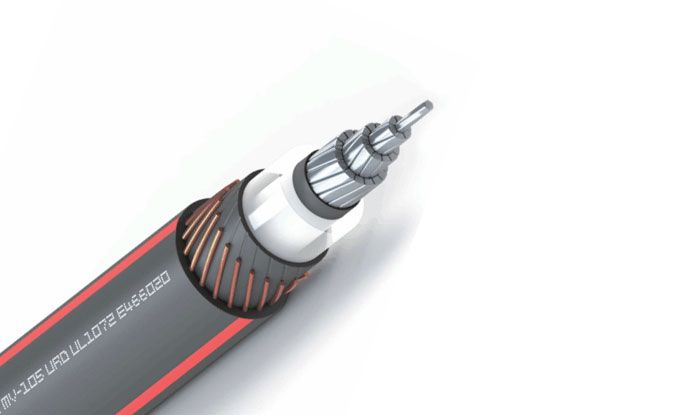

CSA MV-90/MV-105 URD Cable

5-46 kV URD Cable (MV-90/MV-105)Underground Residential Distribution Cables are intended for use
in dry or wet locations for distribution of single or three phase medium voltage power. Suited for use
in wet and dry areas, conduits, ducts, troughs, trays, direct burial, sunlight, and where superior electri
cal properties are desired. These cables are capable of operating continuously at the conductor tem
perature not in excess of 90°C for normal operation. 130°C for emergency overload, and 250°C for short
circuit conditions.

• UL1072 Medium-Voltage Power Cables.
• ICEA S-94-649 Concentric Neutral Cables Rated 5 - 46kV.
• AEIC CS8 Specification for Extruded Dielectric, Shielded Power Cables Rated 5 through 46 kV.
• CSA C68.5 - Primary shielded and concentric neutral cable for distribution utilities.

a. Voltage Rated voltage (U):
5~46 kV
b. Working temperature:
-40ºC or -25ºC MIN, 90ºC or 105 ºC MAX
c. Performance:
Min. Bending Radius during Installation : 20xD
Min. Bending Radius Fix installed : 15Xd
Sun resistance
-40 Degree
