Product Details
Application:
Standard for Electrical Power and Control Tray Cable.
Features:
Rating voltage: 600V
The maximum operating temperature: 90℃
Standard Certification: UL3003
Flame test: FT4
RoHS & Reach Compliant
The maximum operating temperature: 90℃
Standard Certification: UL3003
Flame test: FT4
RoHS & Reach Compliant
Reference Standard
UL 3003
Specifications
ROHS
Low Voltage
Working Temperature 90℃
Flame Retardant

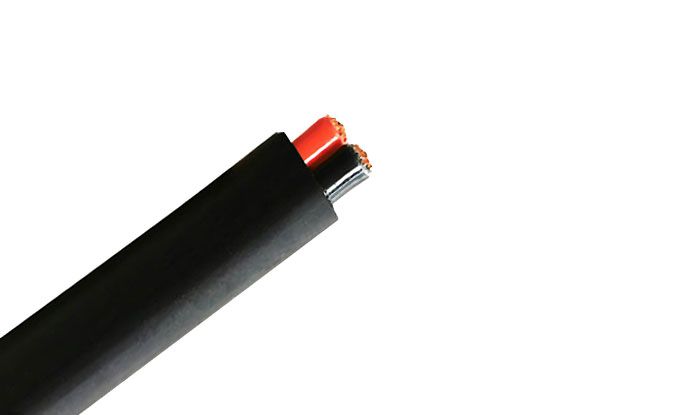

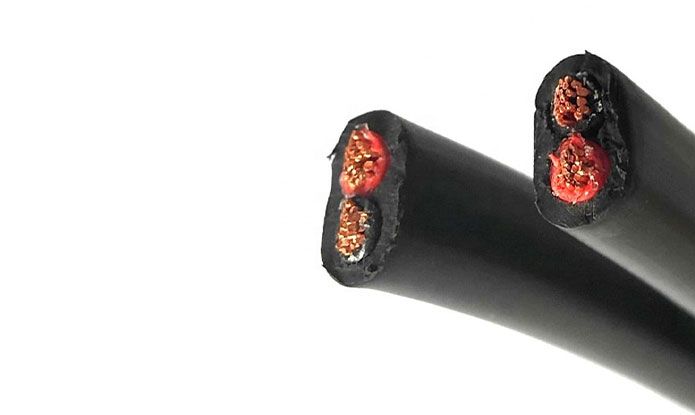

construction
- Conductor:
Bare copper stranded 12AWG(19/0.47mm)
- Insulation:
PVC, Min.average thickness: 0.38mm, OD=3.20±0.10mm, Color: 1.black 2.red
- Insulation 2:
Nylon, Min.average thickness: 0.15mm, OD=3.55±0.10mm, Color: 1~2.Nature
- Jacket:
PVC, Min.average thickness: 1.14mm, W×H=(9.70±0.30mm)×(6.10±0.20mm), color: black
