•Wiring of fire alarms •Smoke alarms •Voice communications •Burglar alarms
•Fire protection circuits •Suggested voltage rating: 300 volts

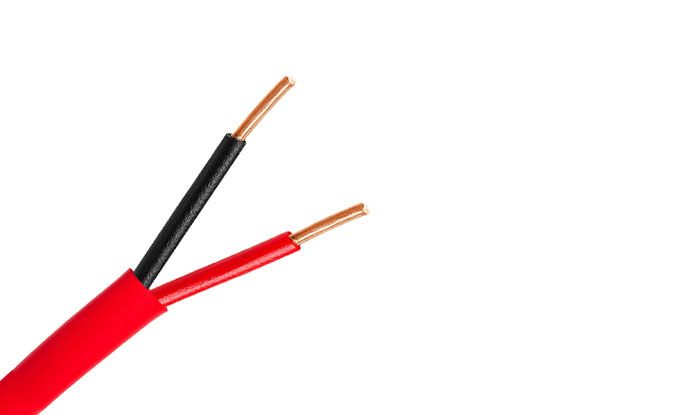

Fire Alarm Cable Multi-Paired, Unshielded, Non-Plenum CSA FAS105, FPL (UL), NEC Type PLTC
Fire Alarm Cable Multi-Paired, Unshielded, Non-Plenum CSA FAS105, FPL (UL), NEC Type PLTC
Product Details
Application
Compliances
•NEC Article 725 PLTC (UL: 105˚C, 300 V)
•NEC Article 760 Type FPL (UL: 105˚C, 300 V)
•CSA FAS105 (CSA: 105˚C, 300 V)
•C22.2 No. 208-03 (R2008) Weather
(Sunlight) Resistant (1,000 HR)
•RoHS Compliant Directive 2011/65/EU
•Designed to meet UL 70,000 BTU Vertical Tray Flame Test
•Passes CSA FT4 Vertical Flame Test
•CE: Low Voltage Directive (LVD) 2006/95/EC
•NEC Article 760 Type FPL (UL: 105˚C, 300 V)
•CSA FAS105 (CSA: 105˚C, 300 V)
•C22.2 No. 208-03 (R2008) Weather
(Sunlight) Resistant (1,000 HR)
•RoHS Compliant Directive 2011/65/EU
•Designed to meet UL 70,000 BTU Vertical Tray Flame Test
•Passes CSA FT4 Vertical Flame Test
•CE: Low Voltage Directive (LVD) 2006/95/EC
Specifications
ROHS
Low Voltage
UV Resistance
Flame Retardant
construction
- Conductor:
•22 and 18 AWG fully annealed solid bare copper per ASTM B3 •Twisted pairs
- Insulation:
•Premium-grade, color-coded PVC •Fire Alarm Color Code Chart
- Jacket:
•Premium-grade PVC, red •Temperature range: -20°C to +105°C
