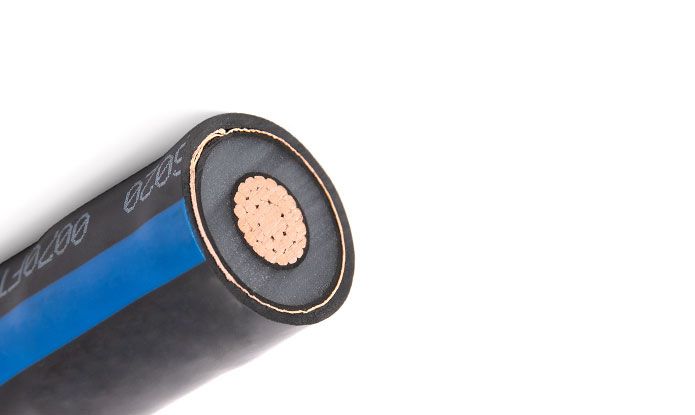

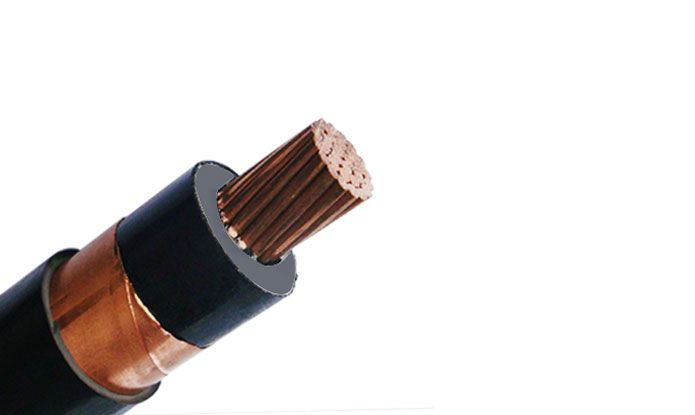

MV-90 XLPE Insulated, PVC Jacketed 5kV-35kV, Copper tape Cable

Inquire Now

Product Details

Application

Primary power and distribution circuits in industrial and commercial installations, power circuits in generating plants where line to ground fault current are within shield capabilities. May be used in wet or dry locations, installed in raceways, duct, and open air, aerially or directly buried as permitted by NEC.

Standards:

UL 1072 Medium Voltage Power Cables.
ICEA S-93-639/NEMA WC74 5 kV – 46 kV Shielded Power Cables.
ICEA S-97-682 Standard for Utility Shielded Power Cables Rated 5 kV – 46 kV.
AEIC CS8
Specification for Extruded Dielectric, Shielded Power Cables Rated 5 kV – 46 kV.

Specifications

Maximum operating voltage:
• 5 kV to 35 kV 100% and 133% IL Maximum conductor operation temperatures: Wet and dry locations
• Normal: 90 °C
• Emergency: 130 °C
• Short Circuit: 250 °C

Specifications

UV Resistance

Medium Voltage

Working Temperature 90℃

Flame Retardant

construction

Conductor:
Soft annealed uncoated copper compacted Class B per ASTM B496 or hard drawn Aluminum-1350 compacted Class B per ASTM B400. On request, strand filled or compressed strand. Sizes: 8 AWG (6 AWG Aluminum) up to 1000 kcmil. On request, larger conductor sizes available.
Conductor Shield:
Semi conducting cross-linked polyethylene (XLPE).
Insulation:
Thermoset crosslinked polyethylene (XLPE). On request, TR-XLPE.
Insulation Shield:
Semi conducting cross-linked polyethylene (XLPE).
Binder Tape:
A suitable tape, as required.
Jacket:
Black sunlight resistance and flame retardant polyvinyl chloride (PVC) compound. Configuration Options: On request, Triplex or Paralleled configurations.
