Product Details
Application
for use as general-purpose wiring for installation in conduit or other recognized raceway. THHN T90 wire may also be used for machine tool, appliance, and control circuit wiring. Read on below for THHN T90 wire specs.
Standards:
UL83: Standard for requirements for 600V, single condutor thermoplastic-insulated wire and cables.
Built to CSA C22.2 No.75, LL90458
Canadian Electrical Code
CSA FT-1 - Flame Test
UL, c(UL) and CSA listed
Built to CSA C22.2 No.75, LL90458
Canadian Electrical Code
CSA FT-1 - Flame Test
UL, c(UL) and CSA listed
Technical Data
Voltage: 600v
Max conductor temperature: Oil: 75°C, Wet 75°C, Dry 90°C
Max conductor temperature: Oil: 75°C, Wet 75°C, Dry 90°C
Specifications
Fire Resistance

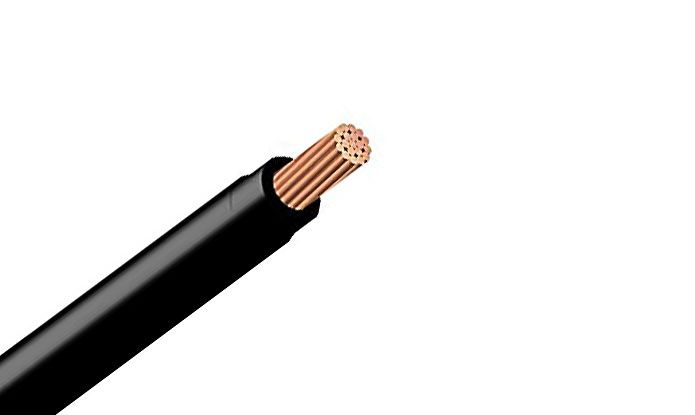

construction
- Conductor:
Bare, soft annealed stranded copper
- Insulation:
PVC (Polyvinyl-Chloride)
- Coating:
Nylon
- Colours:
Black, Blue, Green, Brown, Red, Orange, Yellow, Gray, White, Pink, Tan; Striping and Other colors available upon request.
